Choosing the Best Automatic Sliding Door Operators for Heavy-Duty Use

Selecting the right Automatic Sliding Door Operators for heavy doors is crucial. Several critical factors ensure effective operation for heavy doors. An inadequate Automatic Door Opener for Sliding Doors often leads to significant operational issues. For example, a weak heavy-duty automatic sliding door motor can fail quickly. Understanding what affects the price of sliding door motors helps decision-makers. A reliable China automatic door operator supplier provides quality options. Each Automatic Sliding Door Operator requires careful consideration.

Key Takeaways

• Measure your door’s weight and how often it will be used. This helps you pick an operator strong enough for the job.
• Consider the weather conditions where the door will be. Extreme heat, cold, or dust can affect how well the operator works.
• Choose an operator with good safety features. This protects people from getting hurt and meets important safety rules.
• Look for operators that save energy and do not make too much noise. This helps save money and keeps the area quiet.
• Make sure to get professional help for installation and regular check-ups. This keeps your door working well for a long time.

Assessing Your Heavy Door Needs for Automatic Sliding Door Operators

Choosing the correct automatic sliding door operator begins with a thorough evaluation of the door itself and its intended use. This assessment ensures the selected system can handle the demands placed upon it.

Door Weight and Dimensions

The first step involves accurately measuring the door’s weight and dimensions. Operators have specific weight limits. For example, some standard systems like the ES90 or KA120 handle up to 120 kg. The KA150 can manage 150 kg. A cost-effective model like the KA250 supports a single door weighing 300 kg or 250 kg per door for double openings. For truly heavy-duty applications, the KA-SMART system offers a maximum capacity of 600 kg. The Record TSA 20 telescopic sliding door system handles 2 x 130 kg for single sliding doors and 4 x 90 kg for telescopic doors. Exceeding these limits leads to premature operator failure and safety risks. Door height and width also affect the overall load and stress on the operator’s components.

Door Material and Construction

The materials used in a door significantly influence its total weight. Steel doors, for instance, weigh between 1.40 and 1.97 pounds per square foot, depending on insulation. Solid wood doors, especially new lumber, range from 3 to 4 pounds per square foot, while reclaimed wood can be heavier at 4 to 5 pounds per square foot. Glass panels are also substantial, weighing 6 to 12 pounds per square foot.

Door construction also adds to the weight. Insulation can increase a door’s total weight by 10% to 20%. A 300-pound door might gain up to 60 pounds from insulation alone, potentially requiring a more powerful operator. Even lightweight fiberglass and vinyl doors often have steel frames, which contribute to their overall mass. Insulated glazing, using quarter-inch glass, effectively doubles the weight compared to single-pane glass. These factors determine the required power of the operator.

Traffic Volume and Frequency of Use

High traffic volume directly impacts the operator’s workload. Doors in busy areas, like retail stores or hospitals, open and close many times each day. This frequent use demands a more robust and durable operator. An operator designed for light use will quickly wear out under constant heavy-duty operation. Therefore, assessing the expected number of daily cycles helps determine the necessary strength and longevity of the chosen system. High-traffic environments require operators built for continuous operation and higher duty cycles.

Environmental Conditions and Exposure

The environment where a door operates significantly affects the automatic sliding door operator. Extreme temperatures, humidity, and dust can all impact performance and lifespan. Operators must withstand these conditions to function reliably.

Cold weather presents several challenges for automatic door operators. Batteries lose charge faster in low temperatures. They can even freeze, which reduces their efficiency. This leads to malfunctions. Oil-based lubricants also thicken in cold conditions. This makes moving parts like chains, gears, rollers, and hinges operate sluggishly. Sometimes, they stop entirely. Components such as hinges, chains, and gear assemblies can freeze. This prevents proper door operation. Snow, ice, or frost accumulation can block infrared sensors or safety beams. This compromises the door’s ability to detect obstacles and respond to commands. Accumulated snow and ice can also obstruct the door’s path. This is especially true for sliding doors. It leads to jams or prevents full opening and closing.

Hot weather also creates problems for operators. Frequent operation in hot conditions causes the motor to overheat. This triggers thermal shut-offs. It also significantly shortens the motor’s lifespan. High temperatures accelerate the drying of lubricants. This increases friction between moving parts. It leads to premature wear. Extreme heat reduces battery efficiency. It causes overheating and shortens battery life.

Humidity and dust also demand specific operator features. The IP (Ingress Protection) rating certification evaluates an automatic door operator’s resistance to dust and water penetration. This is a standard measure.

For humid conditions, automatic door operators need specific protections:

• They should have moisture resistance and waterproofing features.
• Internal components must use corrosion-resistant materials.
• Effective sealing designs are necessary.
• Good ventilation helps minimize internal moisture.

For dusty conditions, operators require different features:

• They need dust-proof features.
• Protective covers or filters shield internal components from dust.

Choosing an operator with the correct environmental protections ensures its long-term reliability. It also prevents costly repairs and downtime.

Understanding Types of Automatic Sliding Door Operators

Different types of automatic sliding door operators exist, each offering unique advantages for various applications, especially for heavy-duty use. Understanding these distinctions helps in selecting the most appropriate system.

Electromechanical Automatic Sliding Door Operators

Electromechanical operators are the most common type. They use an electric motor, gearbox, and a belt or chain drive system to move the door panels. A control unit manages the motor’s speed and direction. These operators are reliable and cost-effective for many standard and moderately heavy doors. They offer good control over opening and closing speeds. Many commercial buildings use electromechanical systems due to their proven performance and widespread availability.

Electrohydraulic Automatic Sliding Door Operators

Electrohydraulic operators use hydraulic fluid pressure to power the door movement. An electric pump pressurizes the fluid, which then drives a piston or rotary actuator. These systems are known for their immense power and smooth operation. They excel in applications requiring significant force, such as very large or exceptionally heavy doors. Electrohydraulic operators provide precise control and can handle extreme loads with ease. Their robust design makes them suitable for industrial settings or high-security entrances.

Linear Motor Automatic Sliding Door Operators

Linear motor operators represent a more advanced technology. They use a direct drive system without gears or belts. The motor’s stator is fixed to the door frame, and the rotor is integrated into the door panel. Magnetic forces directly move the door. This design results in extremely quiet operation and high efficiency. Linear motor systems offer excellent precision and a long lifespan due to fewer moving parts. For DC motors, brush replacement is required approximately every 100,000 cycles. AC motors (three-phase or single-phase) do not have brushes, so this maintenance is not needed. Instead, AC motors may require lubrication and replacement of gears or bearings. Additionally, it is important to watch for oil leaks in AC motors if a seal is damaged. These Automatic Sliding Door Operators are ideal for environments where noise reduction and smooth performance are critical.

Belt-Driven vs. Chain-Driven Systems for Heavy Doors

When selecting an automatic sliding door operator for heavy doors, the drive system plays a crucial role. Operators typically use either belt-driven or chain-driven mechanisms. Each system offers distinct characteristics suitable for different demands.

Belt-driven systems employ a reinforced rubber belt, often with steel cords, to move the door panels. These systems are known for their quiet operation and smooth movement. They produce less noise compared to chain drives. Belt drives also require less lubrication, which reduces maintenance needs. However, belts can stretch over time, especially under constant heavy loads. This stretching may lead to reduced precision or eventual breakage. For extremely heavy doors, belts might not offer the same robust strength as chains.

Chain-driven systems utilize a metal chain, similar to a bicycle chain, to transmit power from the motor to the door. These systems are exceptionally strong and durable. They handle very heavy doors and high-frequency use with greater reliability. Chains resist stretching and breaking under extreme stress. This makes them ideal for industrial applications or oversized doors. A drawback of chain drives is their increased noise level during operation. They also require more regular lubrication and maintenance to prevent rust and ensure smooth movement.

For heavy-duty applications, chain-driven systems generally offer superior strength and longevity. They withstand the constant strain of moving massive door panels better than belts. While belt drives provide quieter operation, their suitability decreases as door weight increases. Therefore, engineers often recommend chain-driven operators for the heaviest doors where durability and power are paramount.

Key Performance and Quality for Automatic Sliding Door Operators

Choosing the right automatic sliding door operator involves looking closely at its performance and overall quality. These aspects ensure the door works well and lasts a long time.

Load Capacity and Power Output Requirements

The operator’s ability to handle the door’s weight is very important. An operator must have enough power to move heavy doors smoothly and reliably. Different configurations and models have varying weight limits. For example, a single opening setup can often manage two door panels, each weighing up to 150 kg. A double opening setup can handle four door panels, with each weighing up to 120 kg.

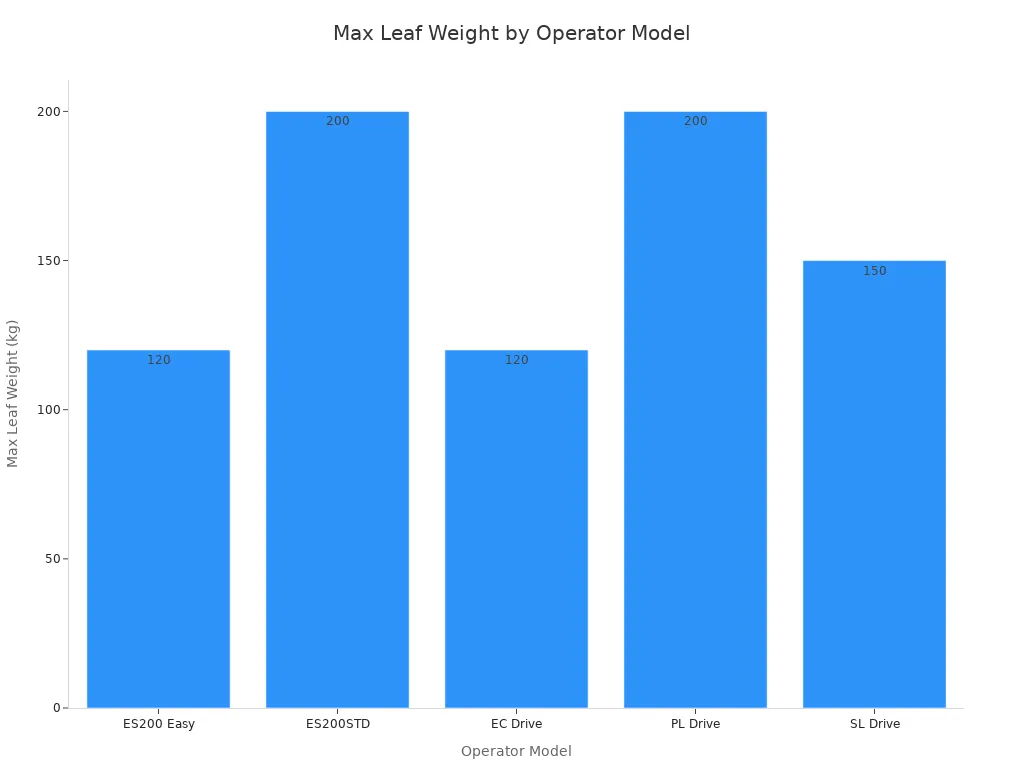

Here is a look at the maximum leaf weight some common operator models can handle:

This chart further illustrates the capacity of various operators:

For extremely heavy applications, specialized systems exist. The Automatic Slide Gate Opener SL800AC, for instance, handles gates up to 800 kg. Matching the operator’s load capacity to the door’s actual weight prevents strain and premature failure.

Durability and Expected Lifespan

Durability is a key factor for heavy-duty automatic sliding door operators. These systems face constant use and stress. A high-quality, well-maintained automatic sliding door can last between 15 to 20 years. Several factors influence this lifespan. These include the door’s quality, how well people maintain it, and how often people use it.

For heavy-duty gate openers, a properly installed and well-maintained unit typically lasts 10 to 15 years or even longer. Its lifespan depends on the quality of its construction. The frequency of use also plays a role. Regular maintenance and the environmental conditions it operates in are also important. Professional installation also contributes to a longer life. Investing in durable components reduces the need for frequent repairs and replacements.

Safety Features and Compliance Standards

Safety is paramount for any automatic door system, especially for heavy-duty applications. International standards set strict requirements to protect users.

EN 16005 is a European standard. It outlines specific safety features:

• It sets minimum requirements for motion sensors and other safety devices.
• It defines door response times and detection ranges.
• It requires obstacle detection and auto-reverse features.
• It mandates emergency opening and break-out mechanisms.

ANSI/BHMA A156.10 is a standard used in the United States. It covers:

• Activation sensor range and door opening speeds.
• Force limitations for both opening and closing actions.
• Proper placement of safety beams and presence sensors.
• Requirements for signage and manual override options.

Essential safety features are common across compliant systems:

• Presence and Motion Sensors: High-quality infrared or microwave sensors detect movement and people standing still. This prevents unexpected door closures.
• Safety Beams: Infrared safety beams sit at low levels. They prevent entrapment, especially for children, wheelchair users, and pets.
• Obstacle Detection and Auto-Reverse: The door must stop and reverse direction immediately if it hits an obstruction. This prevents injury or damage.
• Manual Override and Emergency Break-Out: These mechanisms allow manual opening or break-away operation. This helps with quick evacuation during power failures or emergencies.
• Backup Power Supply: Battery backups ensure the door still works during power outages. This is crucial in critical areas.
• Audible and Visual Alerts: Alarms or warning lights may be necessary in some commercial settings. They make users more aware of door operation.

Energy Efficiency and Noise Reduction

Choosing an automatic sliding door operator involves considering its energy efficiency and noise output. These factors impact operational costs and the overall environment. Energy-efficient operators reduce electricity consumption. This leads to significant long-term savings. They also contribute to a building’s sustainability goals.

Modern energy-efficient automatic door motors use up to 30% less energy than traditional AC motors. They also feature significantly lower standby consumption. Many consume less than one watt while idle. Older models may consume 5 watts or more when not in use. This difference adds up over time. For example, consider the annual energy consumption of various door operators:

While these figures relate to garage door openers, they illustrate the potential for energy usage. Automatic sliding door operators with advanced features like sleep modes and efficient motor designs minimize their power draw. This makes them a smart choice for heavy-duty applications.

Noise reduction is another important aspect. Heavy doors can generate considerable noise during operation. This is especially true in high-traffic areas. Excessive noise can disrupt occupants and create an unpleasant environment. High-quality operators incorporate features to minimize sound. These features include precision-engineered components, advanced motor technology, and sound-dampening materials. Linear motor operators, for instance, operate very quietly because they lack gears and belts. Smooth operation also reduces wear and tear on components. This extends the operator’s lifespan.

Brand Reputation and Warranty Coverage

The brand reputation of an automatic sliding door operator manufacturer offers insights into product quality and reliability. Established brands often have a history of producing durable and high-performing systems. They invest in research and development. This ensures their products meet stringent quality standards. A reputable brand also typically provides excellent customer support and technical assistance. This becomes crucial if issues arise after installation.

Warranty coverage protects your investment. It demonstrates the manufacturer’s confidence in their product. A comprehensive warranty covers defects in materials and workmanship for a specified period. For heavy-duty operators, a strong warranty is particularly important. These systems endure constant stress.

Many manufacturers offer different warranty terms for various components. For example, Power Access Openers and Controls provides a 1-year limited warranty on materials and workmanship for their products. They offer extended coverage for critical parts:

• Power Access Model 2300 Motor and Slip Friction Clutch Arm: 10-year major component limited warranty.
• Power Access Model 4300 Motor and Actuator Assembly: 10-year major component limited warranty.

These extended warranties on major components highlight the expected durability of the core mechanisms. Always review the warranty details carefully. Understand what the warranty covers and for how long. A good warranty provides peace of mind. It also safeguards against unexpected repair or replacement costs. It ensures the operator remains functional for its intended lifespan.

Installation and Maintenance of Automatic Sliding Door Operators

Professional Installation Considerations

Proper installation ensures the safe and efficient operation of heavy-duty automatic sliding doors. Professional installers possess specific certifications and experience. The American Association of Automatic Door Manufacturers (AAADM) offers a key certification. This certification trains technicians on all automatic door components. It enables them to inspect existing doors for safety and reliability. They can also identify root causes of problems. To qualify for AAADM training, candidates must have worked in the automatic pedestrian door industry for at least six months. Alternatively, they need 90 days of experience plus a factory training course from an AAADM member. AAADM defines a primary business as a distributor of automatic pedestrian door products or a company deriving over 50% of its business from the sale, installation, or service of full power automatic pedestrian door products.

Compatibility with Access Control Systems

Modern automatic sliding doors often integrate with various access control systems. This enhances security and manages entry. Common integration methods include dry contact, which uses a relay signal from the access control system to trigger the door’s opening. Wet contact employs a DC output from the access control system to activate the door. Weigand input involves a Weigand 26-bit output from the access control system to control the door. Access control systems, including card readers and biometric readers, often hold UL 294 certification. This standard works with UL 325, which applies to gate and door operators. This ensures both security and operational safety for integrated systems.

Ease of Maintenance and Serviceability

Regular maintenance significantly extends the lifespan and reliability of automatic sliding door operators. For high-traffic environments, quarterly maintenance is advisable. This includes locations like warehouses, garages, and delivery bays. Sensors in high-traffic or dusty conditions may require more frequent cleaning than the recommended monthly schedule. A comprehensive check every quarter or half-year is also beneficial. This check includes cleaning sensors, lubricating tracks, and replacing aging parts. Critical components requiring regular inspection and servicing include hinges, pivots, electrical components, and battery backups. Technicians also check weather stripping, seals, and the drive mechanism, which includes belts, gears, and motors. They inspect glass, glazing, and all wiring. The motor, sensors, switches, and control panel are vital for smooth operation.

Availability of Spare Parts and Technical Support

The long-term operation of automatic sliding door operators depends heavily on the availability of spare parts and reliable technical support. Manufacturers typically ensure spare parts availability for at least five years after a product’s production ends. This commitment helps users maintain their systems for an extended period. Warranties for these spare parts usually last between one and three years. This coverage provides peace of mind for component replacements.

Choosing a supplier with robust technical support is also crucial. Reputable suppliers offer comprehensive support services. Many provide emergency repair services 24 hours a day, 7 days a week. This ensures quick resolution of urgent issues. Such immediate assistance minimizes operational disruption. Certified technicians handle these repairs. They receive full training and certification. These technicians adhere to industry safety standards and regulations. This guarantees safe and effective service.

Some companies offer expert maintenance technicians around the clock. They are available 24 hours a day, 7 days a week, 365 days a year. This ensures prompt and competent service whenever needed. Even if office hours are standard, after-hours calls forward for emergency service. This continuous availability protects facilities. AAADM-certified technicians are often available around the clock for 24-hour emergency service. This ensures business safety and security. This level of support is vital for heavy-duty applications. It keeps doors functioning reliably. It also prevents costly downtime.

A thorough assessment of heavy door operators is crucial. This ensures optimal performance and safety. Investing in quality automatic sliding door operators offers significant long-term benefits. These include enhanced durability, reduced maintenance, and improved operational efficiency. Businesses should always consult experts for optimal selection and professional installation. This guarantees the best solution for specific heavy-duty needs.
