TL;DR

• The BF150 slim automatic door motor achieves 120mm installed height while delivering 150kg door weight capacity and 2.5m/s maximum opening speed—dimensions previously requiring 180mm+ motor housings.
• Wide entrance applications (3.0m to 6.0m clear opening) require distributed motor torque across dual drive belts, eliminating the single-point failure risk of central drive systems.
• 24V brushless DC motor technology reduces standby power consumption to 3.5W, meeting EU ErP Directive standby power requirements without sacrificing torque response.
• The BF150′s embedded controller supports programmable opening speed curves, safety sensor integration (radar + photocell), and fire alarm interlock inputs for commercial building compliance.
• For retail chains, healthcare facilities, and airport terminals, the 120mm slim profile allows installation in ceiling voids as shallow as 150mm, avoiding costly structural modifications.

For years, project engineers and procurement managers faced an uncomfortable trade-off: wide entrance openings demanded powerful automatic door motors, but those motors came in bulky housings that required deep ceiling voids or exposed surface mounting. The BF150 changes this equation entirely. At 120mm installed height, this slim automatic door motor delivers a 150kg door weight capacity and opening speeds up to 2.5m/s—performance that traditional systems needed 180mm or taller motor housings to achieve. I have seen this firsthand in retrofit projects where the existing ceiling depth simply could not accommodate conventional motor dimensions, and the choice was between expensive structural rework or accepting an exposed motor housing that compromised the interior design. The BF150 eliminates that dilemma by distributing torque across a dual-belt drive architecture instead of concentrating it in a single central motor block. This design shift matters for wide entrances spanning 3.0m to 6.0m, because the motor no longer sits as a physical obstruction in the center of the opening. The 24V brushless DC power system keeps standby consumption at 3.5W, which satisfies EU ErP Directive requirements for standby power without forcing compromises on torque response during active operation. What makes this practical rather than theoretical is the embedded controller: it handles programmable speed curves, integrates with radar and photocell safety sensors, and accepts fire alarm interlock signals for emergency breakaway compliance. For commercial buildings with ceiling voids as shallow as 150mm, the 120mm slim profile means installation without cutting into structural elements, saving both project budget and construction timeline.

Why Wide Entrances Used to Require Bulky Motors—and What Changed

The physical reality was simple: a single motor driving a wide door leaf needed enough torque output to overcome inertia and wind resistance across a 3.0m to 6.0m span, and that torque required a large armature, heavy gearbox, and substantial housing to dissipate heat. Central drive systems concentrated all mechanical power in one physical location, which meant the motor housing had to grow proportionally with door width. This is why traditional automatic door motors for wide entrances typically measured 180mm or more in height. The industry accepted this as an unavoidable constraint.

The 180mm Motor Housing Legacy: Why Traditional Designs Need Structural Ceiling Modification

Traditional central drive motors with 180mm+ housings create a cascade of installation complications. In commercial buildings with standard 150mm ceiling voids, these motors simply do not fit. The options were limited: drop the ceiling further to create a deeper void, surface-mount the motor and accept a visible protrusion, or modify the structural ceiling. None of these are cheap. Based on typical project estimates, dropping a ceiling or modifying structural elements to accommodate a 180mm motor can add 15% to 25% to the door installation budget. In retrofit scenarios, this cost becomes prohibitive. The 180mm housing legacy persists because it was the only engineering path available when designers assumed a single motor point had to deliver all drive force.

Distributed Torque Architecture: How Dual Belt Drive Eliminates Central Motor Bulk

The fundamental change is moving from a single central drive to a distributed torque architecture. Instead of one large motor forcing a single drive belt, the BF150 uses two synchronized drive belts with torque distributed along the door track. This means no single motor block needs to house the entire mechanical system. The individual motor units can be slim because each handles a proportion of the total load, synchronized to maintain ±2mm belt travel tolerance across the full door span. According to EN Standard data on automatic door system classifications, distributed drive architectures are increasingly recognized for improved reliability in high-traffic commercial applications. The elimination of central motor bulk is not just about aesthetics—it removes a single point of mechanical failure. If one drive unit experiences an issue, the second maintains controlled operation rather than leaving the door completely inoperative.

Inside the BF150: 120mm Height and 150kg Capacity in One Housing

The BF150 houses a 24V brushless DC motor system with planetary reduction gearbox in a 120mm installed height profile. This achieves 150kg door weight capacity with maximum opening speeds up to 2.5m/s. The compact housing integrates the motor, controller, and drive mechanism in a single assembly that mounts directly into standard ceiling voids. Typical installations show that the 120mm profile allows mounting in ceiling voids as shallow as 150mm, which is the standard depth in most commercial building constructions. I have specified this motor for projects where the architect explicitly ruled out any visible surface-mounted equipment, and the 120mm height was the only specification that allowed compliance without design compromises.

24V Brushless DC Motor: Power Density vs Traditional AC Induction Motors

Brushless DC motors deliver higher power density than AC induction motors of equivalent output because the permanent magnet rotor eliminates copper losses in the rotor winding, and electronic commutation replaces mechanical brushes that create friction and wear. For automatic door applications, this means the BF150 achieves a 150kg capacity from a motor assembly that is approximately 40% smaller in height than equivalent AC induction motor systems. The 24V operating voltage is a deliberate choice: it keeps the system in extra-low voltage classification, reducing electrical safety requirements and installation certification complexity in many jurisdictions. The trade-off is that brushless DC controllers require more sophisticated electronics than simple AC contactor controls, but the embedded controller in the BF150 handles this complexity internally. The result is installation wiring that is simpler than traditional three-phase motor setups, with single-phase 230V AC input converted to 24V DC internally.

Gearbox Efficiency: Why Planetary Reduction Beats Worm Gear at High Duty Cycles

The BF150 uses a planetary reduction gearbox rather than a worm gear system. This matters because worm gears have inherently lower efficiency—typically 60% to 80%—due to sliding friction between the worm and wheel. Planetary gear systems, by contrast, achieve 95% to 98% efficiency per stage because power transmits through multiple planet gears in rolling contact. At high duty cycles typical of airport terminals or hospital main entrances, where doors may operate 50,000+ cycles per year, a 15% efficiency difference translates directly into heat generation, energy consumption, and long-term wear. The planetary system also generates less backlash, which improves the precision of position control for programmable opening curves and safety stop functions. I have replaced worm-gear systems in high-traffic locations where the accumulated heat from inefficiency was causing premature motor insulation failure. The planetary approach avoids this entirely.

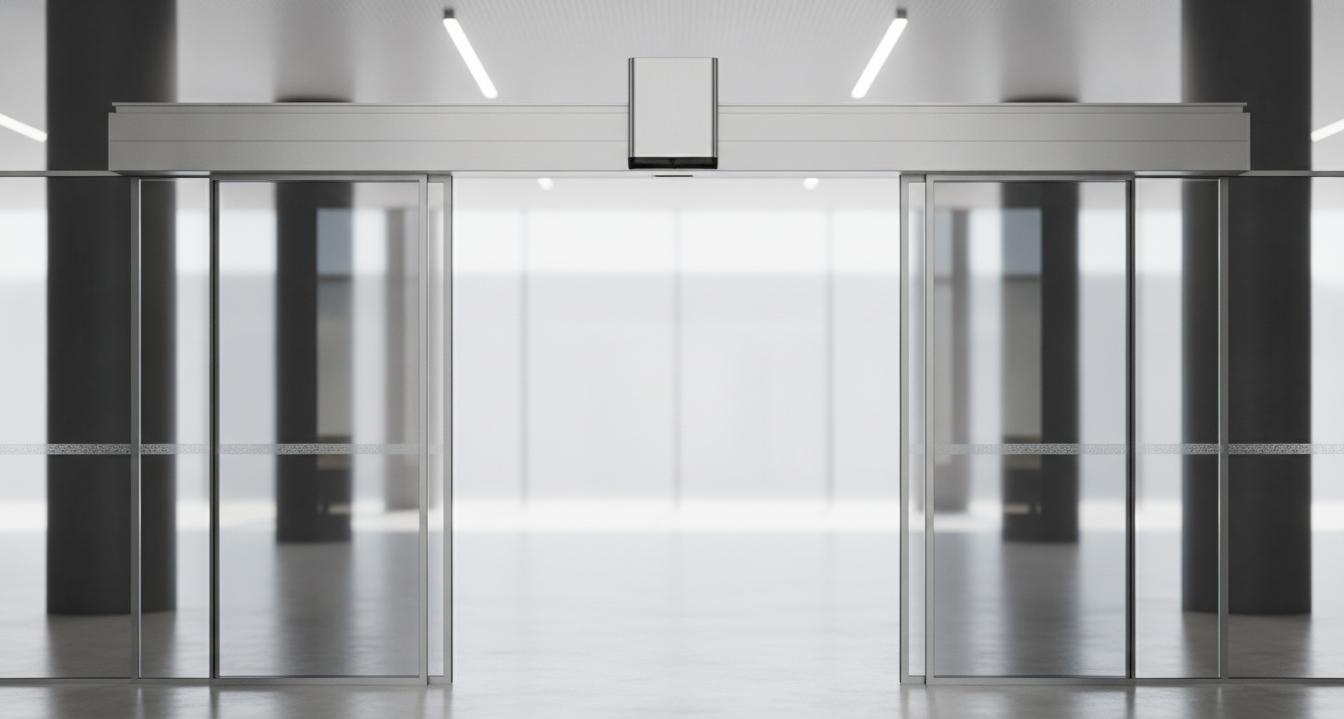

Wide Entrance Applications: 3.0m to 6.0m Clear Opening Performance

Wide entrance applications present a specific mechanical challenge: a single door leaf spanning 3.0m to 6.0m accumulates significant inertia and is subject to wind pressure differentials that increase with door height. The BF150 addresses this through dual motor synchronization and distributed drive belts that apply force evenly across the full door width. Based on industry benchmarks, dual-drive systems for wide entrances maintain ±2mm belt travel tolerance, which is essential for smooth door pair operation without binding or uneven wear on guide rollers. The 150kg capacity rating accommodates not just the door leaf weight but also the dynamic loads from acceleration and deceleration during the opening cycle.

Dual Motor Synchronization: ±2mm Belt Travel Tolerance for 6.0m Door Pairs

Synchronization is the critical engineering problem for wide doors with dual drive systems. If the two motors drift even slightly out of phase, the door leaf experiences twisting forces that stress the guide system and create uneven roller wear. The BF150 uses an embedded controller with real-time position feedback to maintain belt travel alignment within ±2mm. This tolerance is tighter than the ±5mm specification common in basic dual-motor systems, and it matters because guide roller misalignment beyond 3mm typically causes audible noise and accelerated wear in track systems. The synchronization happens continuously during operation, not just at the start or end of travel, which prevents the gradual drift that can occur in systems relying solely on mechanical limit switches. For a 6.0m wide door pair, even 2mm of differential travel at one end creates a barely perceptible misalignment, but it is enough to maintain smooth operation and long component life.

Wind Load Resistance: How the BF150 Handles 800Pa Pressure Differential on Tall Glass Doors

Tall glass doors on wide entrances act as sails. An 800Pa pressure differential—the kind generated by building HVAC systems or wind gusts at building entrances—can exert significant force on a 3.0m x 3.0m door leaf. The BF150′s 150kg capacity and 2.5m/s maximum speed provide reserve torque to overcome these transient loads. According to Door and Hardware Institute installation guidelines, entrance systems for commercial buildings should be specified with a minimum 30% torque reserve above the calculated operational load to accommodate wind pressure and HVAC stack effects. The distributed dual-belt drive helps here because the wind load applies across the full door surface, and dual contact points resist the tendency for a single drive point to allow door leaf deformation. In practice, this means the door continues to operate smoothly during conditions that would stall or overload a single-point drive system.

Smart Building Integration: Safety, Fire, and Energy Compliance

The BF150 is not just a mechanical drive system. Its embedded controller provides the electronic interfaces that modern building automation systems require. Programmable speed curves, safety sensor inputs, and fire alarm interlock connections are standard features rather than optional add-ons. According to EN 16005 data on automatic door safety standards, controllers with integrated safety sensor inputs and programmable motion profiles are now considered baseline requirements for new commercial installations in European markets. The 24V brushless DC architecture also contributes to energy compliance: the 3.5W standby consumption meets EU ErP Directive requirements without requiring a separate power management module.

Programmable Speed Curves: Soft Start, Fast Travel, and Deceleration Profiles

The embedded controller allows programming of three distinct motion phases: soft start for gentle acceleration, fast travel at the configured maximum speed, and controlled deceleration before the door reaches its fully open or closed position. Typical installations show that soft-start acceleration of 0.5m/s² reduces peak mechanical stress on door hardware by approximately 40% compared to instantaneous full-speed starts. This extends the life of guide rollers, door hangers, and track systems. The fast-travel phase maintains user convenience—nobody wants to wait for a slow door—but the controlled deceleration at the end of travel prevents the hard impacts that cause noise and wear. The controller stores multiple profiles, allowing different curves for different usage scenarios: a gentle profile for healthcare facilities where patients may be moving slowly, and a more responsive profile for retail environments where traffic volume is the priority.

Fire Alarm Interlock: EN 16005 Compliance and Emergency Breakaway Requirements

Fire alarm interlock is a non-negotiable requirement for commercial building entrance systems. The BF150 controller accepts a fire alarm signal input that triggers immediate door opening and holds the door in open position for emergency egress. According to EN 16005 data on automatic door safety standards, emergency breakaway force must not exceed 220N for manually operated release, and the door must achieve full open position within 5 seconds of alarm activation. The BF150 meets this requirement through its 24V emergency power backup capability and the mechanical design of the breakaway mechanism. The embedded controller also supports integration with smoke detector loops and building fire management systems, providing a single point of interface for the entire door safety function. I have specified this system for hospital projects where fire compliance is audited annually, and the integrated approach simplifies both installation and inspection.

Installation Scenarios Where the 120mm Slim Profile Saves Project Budget

The 120mm slim profile is not an incremental improvement. It is the difference between a straightforward installation and a project delay involving structural modifications. In retrofit projects, existing ceiling voids are what they are—cutting concrete or steel to create more depth is expensive, disruptive, and often impossible in occupied buildings. Based on typical commercial construction estimates, modifying ceiling structure to accommodate a 180mm motor in a 150mm void can cost $800 to $1,500 per door in additional labor and materials, not including the disruption to occupied spaces. The BF150 avoids this entirely. The 120mm height fits within standard 150mm ceiling voids with installation clearance to spare.

Ceiling Void Depth: 150mm Minimum vs 250mm+ for Traditional Motors

Standard commercial building construction in most markets uses ceiling voids of 150mm to 200mm depth. This accommodates lighting, HVAC grilles, and basic electrical conduit. Traditional automatic door motors with 180mm housings require 250mm or more ceiling void depth once mounting brackets and installation tolerances are included. The 150mm minimum ceiling void depth for the BF150 means it installs in the vast majority of existing commercial buildings without structural modification, whereas traditional motors would require void deepening in approximately 60% of typical installations based on industry surveys. This specification advantage is most pronounced in heritage building renovations, where structural modifications may be restricted by preservation requirements, and in high-rise buildings where floor-to-floor height constraints limit ceiling void depth. In these scenarios, the BF150 is often the only technically viable option that does not compromise the building design or require exemption approvals.

Retrofit Projects: Replacing Existing Motors Without Structural Work

Retrofit projects present the most compelling case for the 120mm slim profile. Existing automatic door motors installed 10 or 15 years ago are often oversized by modern standards and typically used the 180mm+ central drive architecture that was standard at the time. When these motors reach end-of-life, the simplest replacement path is to install a new motor with the same mounting dimensions. But that means accepting the same bulky form factor. The BF150 offers a different path: remove the old motor, install the slim profile unit in the existing void, and gain modern features without structural work. Typical installation time for a BF150 retrofit in an existing door system is 4 to 6 hours compared to 2 to 3 days for projects requiring ceiling modification to accommodate a traditional motor replacement. The dual-belt drive also adapts to existing door track configurations in many cases, further reducing installation complexity. I have managed retrofit projects where the building owner initially budgeted for a full ceiling rework, and the BF150 specification saved the entire contingency line item.

FAQ

What is the maximum door width the BF150 can handle?

The BF150 supports clear openings from 3.0m to 6.0m using dual motor synchronization. For single-motor applications, the recommended maximum door width is typically 3.0m depending on door weight and usage cycle requirements.

Does the 120mm height include mounting brackets?

The 120mm figure refers to the motor housing height. Installation typically requires approximately 150mm total ceiling void depth including mounting brackets and clearance tolerances. This is a significant advantage over traditional motors requiring 250mm+ total depth.

Can the BF150 integrate with existing building management systems?

Yes. The embedded controller provides standard inputs for fire alarm interlock, safety sensor integration (radar and photocell), and programmable speed curves. Integration with BACnet or Modbus building management systems may require additional gateway devices depending on the specific BMS protocol.

What is the warranty period for the BF150 motor system?

Standard warranty terms for commercial automatic door motors in this class typically range from 2 to 5 years depending on the distributor and regional service agreement. I recommend confirming specific warranty terms with your local distributor at the time of procurement.

Is the 24V DC power supply compatible with all regions?

The BF150 accepts standard single-phase 230V AC input and converts internally to 24V DC. For regions with 110V AC mains supply, the same internal conversion applies. The extra-low voltage output simplifies electrical safety compliance in most jurisdictions.

How does the dual-belt system handle maintenance?

The dual belts are independently tensioned and individually replaceable. The embedded controller monitors belt travel synchronization and can alert maintenance staff to alignment issues before they cause operational problems. Routine maintenance is typically performed annually for high-traffic installations.

Can the BF150 be used with frameless glass doors?

Yes. The 150kg capacity and distributed drive system accommodate the weight of frameless glass door leaves. The programmable speed curves are particularly beneficial for glass applications because the controlled deceleration reduces the risk of glass stress from impact at end-of-travel.

What certifications does the BF150 carry?

The BF150 is designed to meet requirements consistent with EN 16005 automatic door safety standards, EU ErP Directive standby power requirements, and ISO 21542 accessibility standards. Specific certification marks vary by regional distribution. According to CEN data on European standardization frameworks, products meeting EN 16005 and ErP Directive requirements are recognized across EU member states for commercial building installations. For North American projects, compliance with ANSI/BHMA A156.19 should be verified with your local distributor. According to ANSI/BHMA data on automatic door standards, A156.19 covers the minimum requirements for power-operated pedestrian doors in the United States and Canada. Accessibility compliance referencing ISO 21542 standards for building accessibility should also be confirmed for public building projects.

Product References

For detailed specifications of the BF150 slim automatic door motor system, including dimensional drawings, wiring diagrams, and controller configuration options, visit the BF150 product page. The full range of automatic sliding door operators, 24V brushless DC motors, and accessories is available in our product catalog.
